Ultra-Thin Composites
Lighter Tomorrow
Next-Generation Ultra-Thin Fiber Prepregs, Functional Fabrics & Specialized Processing Equipment. Mechanical fiber spreading down to 0.025 mm — CFRTP UD tapes, spray-free colored fabrics, and turnkey processing lines for aerospace, automotive, and consumer electronics.
Independent R&D Platform
Full chain capability from fiber spreading to finished structural components. National High-Tech Enterprise.
Our Products
Ultra-thin composite materials for high-end manufacturing

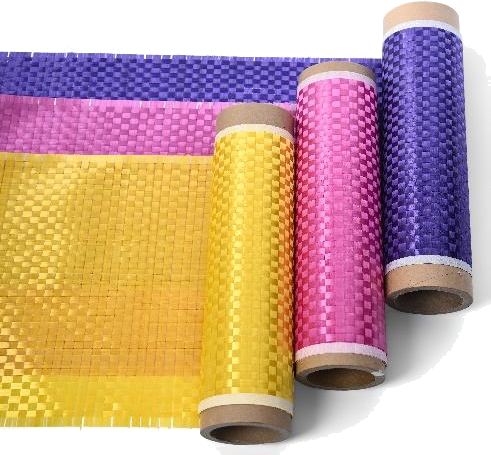

Ultra-Thin Colored Fabrics
Ultra-thin colored fabrics are produced with Zloonex proprietary Fiber Spread-Nano-Sizing process. Instead of electroplating, color is built into the fiber surface through nano-sizing technology, delivering outstanding wash resistance, scratch resistance, and exceptional resin interfacial bonding — with no secondary painting required. Spreading down to 0.025 mm produces an ultra-lightweight non-crimp fabric with low porosity and minimal defects. Single layers are thinner than 0.07 mm, roughly 1/2 to 1/3 the thickness of conventional prepreg fabrics.
CF/PEEK UD Tape 0.07mm
Continuous carbon fiber pre-impregnated with PEEK (polyether ether ketone) in an ultra-thin unidirectional tape. At 0.07–0.20 mm, the tape supports rapid thermoplastic processing — laser-assisted in-situ consolidation, automated tape laying, and hot stamping — replacing autoclave cycles measured in hours with molding cycles measured in seconds to minutes. PEEK matrix gives outstanding toughness with superior impact, delamination, and fatigue resistance. The tape is weldable, repairable, and 100% recyclable.
CF/TPI UD Tape 260°C
Continuous carbon fiber tape pre-impregnated with thermoplastic polyimide (TPI), engineered by a proprietary suspension-melt combined prepreg process. The tape sustains long-term service at 260°C, exhibits a near-zero coefficient of thermal expansion, and withstands space radiation — a combination built for aerospace structures that face thermal cycling and vacuum exposure. Like all Zloonex CFRTP tapes, it is weldable, repairable, and 100% recyclable.
Thermal Conductive Tape 5W/mK
An ultra-thin continuous-fiber thermoplastic tape engineered for heat dissipation. Through-thickness thermal conductivity reaches 5 W/(m·K), giving structural laminates a thermal-management function that ordinary composites cannot provide. The tape is available on TPI, PEEK, and PA6 matrices and supports both in-situ laser consolidation and hot molding.
Small Tow Slitting 0.5K-3K AFP Grade
Precision slitting ±0.01mm. Retains >90% of original fiber mechanical strength. AFP automated placement compatible. 12K spread to 8-25mm. Speed 5-30m/min. Optimized surface treatment for excellent resin infiltration.

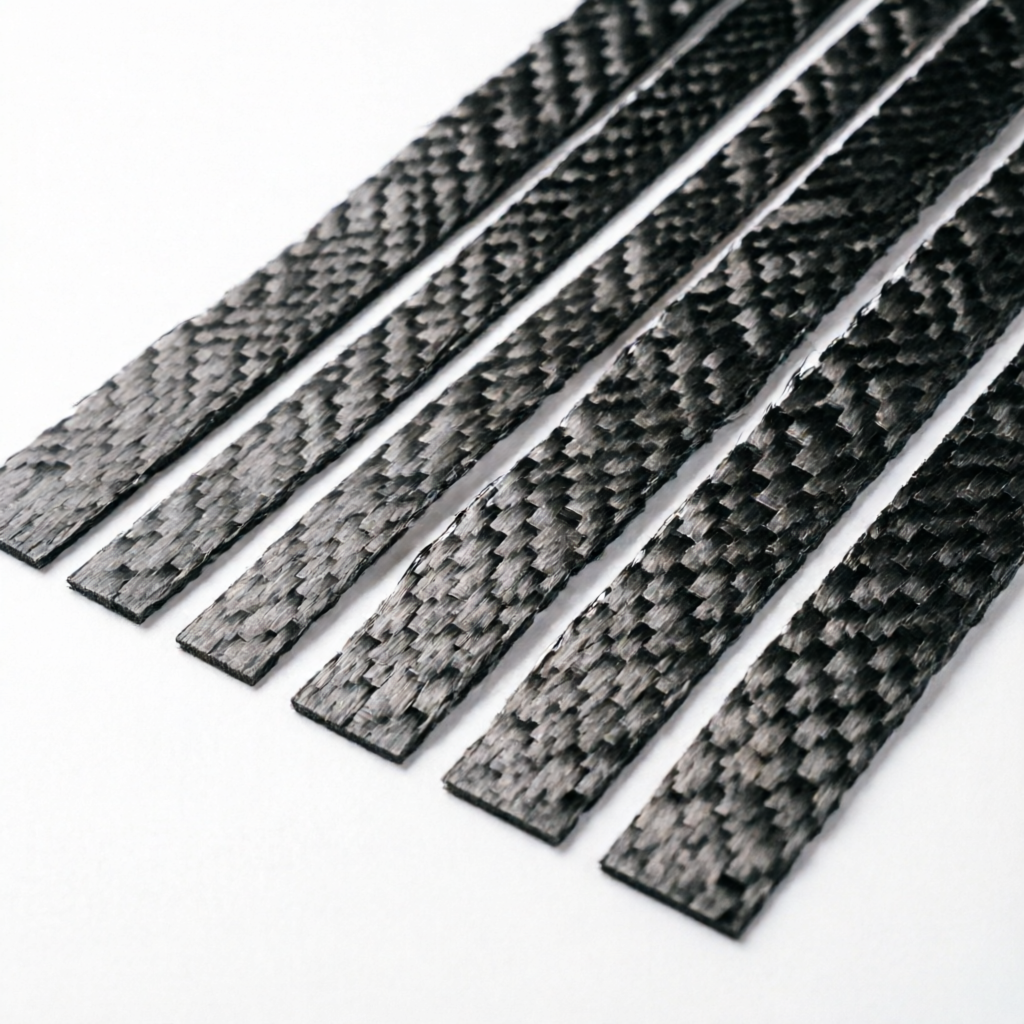

Slitted Small-Tow Carbon Fiber
Zloonex slits spread carbon fiber into precision small tows — 1K, 1.5K, 2K, and 3K, with custom specifications available. The slitted tow retains over 90% of the original fiber mechanical strength while significantly reducing raw-material cost, unlocking design freedom for complex automated fiber placement (AFP) and filament winding. Optimized fiber surface treatment ensures fast resin impregnation and strong interface bonding.
Why Ultra-Thin CFRTP
See how Zloonex ultra-thin CFRTP compares with standard thermoset composites and metals across thickness, weight, cycle time, recyclability, and finishing.
Swipe table to see all columns →
| Performance Metric | Zloonex Ultra-Thin CFRTP | Standard Thermoset Composites | Aluminum / Steel Metals |
|---|---|---|---|
| Single-layer thickness | < 0.07 mm (ultra-thin) | 0.15 – 0.30 mm | 1.0 – 3.0 mm |
| Density / weight | 1/2 of aluminum, 1/5 of steel | 1.5 – 1.6 g/cm³ | 2.7 – 7.85 g/cm³ |
| Molding cycle | Seconds to minutes (hot stamp / laser) | Hours (autoclave curing) | Minutes (stamping / machining) |
| Recyclability | 100% recyclable | Non-recyclable, landfill | Recyclable (high melting energy) |
| Secondary finishing | Spray-free / translucent option | Multi-coat painting | Anodizing / electroplating |
How We Work
Three ways to partner with Zloonex
Custom Material Supply
Development and supply of ultra-thin UD tapes (PEEK/TPI/PA), colored fabrics, functional fabrics, surface-modified fibers, and slit small tows.
Start a ConversationTurnkey Equipment
Custom engineering and manufacturing of fiber spreading lines, surface modification lines, and thermoplastic prepreg test lines.
Start a ConversationJoint R&D
Cooperate through our Engineering Application Joint Laboratory for composite design, spreading and testing, and structure evaluation.
Start a ConversationCapabilities & Core Technologies
Industry-leading ultra-thin composite material technology
Ultra-Thin 0.025mm
Mechanical Fiber Spreading
Thickness <0.07mm, fiber 100% spread without damage. Industry-leading precision vs standard 0.15-0.30mm.
<0.07mmSpray-Free Colored
Nano-Sizing Technology
Wash-resistant, scratch-resistant. Semi-transparent colored finish eliminates secondary painting.
Eco-Friendly100% Recyclable & Weldable
Thermoplastic PEEK/TPI/PA6 Matrix
Weldable, repairable, fully recyclable CFRTP composites. Fast molding cycle vs thermoset hours.
Circular EconomyHigh Performance 5W/mK & 260°C
Thermal & Temperature Resistance
Through-thickness thermal conductivity 5W/mK. Long-term service temperature up to 260°C. Near-zero CTE.
Aerospace GradeThermoplastic UD Tape - Resin Matrix Grade Performance
Three production-grade matrices, one process. All grades are tow pre-impregnated in a continuous melt-impregnation step with no slitting, so fiber orientation and resin content stay uniform across the full tape width and roll length.
Thermal Conductive Tape
TPI / PEEK / PA6
Thickness-direction thermal conductivity reaches 5 W/mK.
Compatible with in-situ laser consolidation and hot molding.
CF / TPI UD Tape
Thermoplastic Polyimide
Long-term service temperature up to 260 °C.
Near-zero thermal expansion coefficient (CTE). Resistant to spatial radiation.
CF / PEEK UD Tape
Polyether Ether Ketone
Long-term loaded service at 180 °C.
Outstanding toughness, impact, delamination and fatigue resistance. Weldable and repairable.
Additional custom thermoplastic prepreg UD tapes available upon request. Widths and fiber content are OEM-adjustable.
TDS Technical Parameters
Side-by-side comparison of Zloonex core UD tape products
Swipe table to see all columns →
| Product | Thickness | Width | Resin Content | Tensile | Modulus | Thermal Conductivity | Service Temp | Feature |
|---|---|---|---|---|---|---|---|---|
| CF/PEEK UD Tape | 0.07-0.20mm | 1-30mm | 25-40% | Very High | Very High | Standard | 180°C | Weldable, 100% Recyclable |
| CF/TPI UD Tape | 0.07-0.20mm | 1-30mm | 25-40% | High | High | Standard | 260°C | Near-Zero CTE, Space Grade |
| Thermal Conductive Tape | 0.07-0.20mm | 1-30mm | 25-40% | High | High | 5 W/mK | 180°C | 3C Thermal Management |
* Data shown are typical values. Custom specifications available upon request. Contact us for full TDS documents.
Equipment & Manufacturing Process - Turnkey CFRTP Lines
Zloonex designs and manufactures its own production equipment. Every line below is developed and built in-house, so equipment capability and material know-how stay matched.

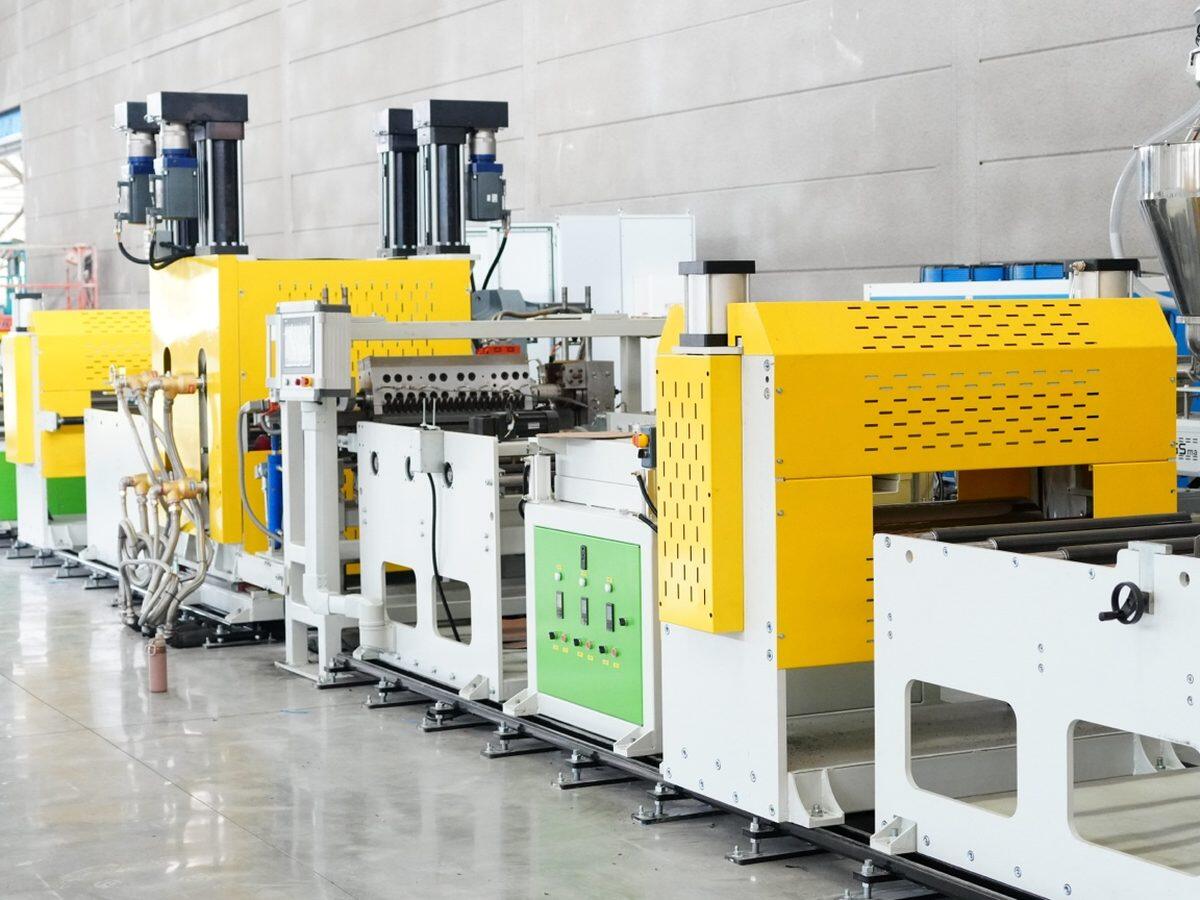

Two-Belt Laminate Press Line
Continuous two-belt flat laminate press for CFRTP sandwich and solid panel lamination, with selectable belt width and heated zones.
| Parameter | Value |
|---|---|
| Belt Width | 550 - 3200 mm |
| Compound Thickness | 0.5 - 100 mm |
| Conveyor Belt | Anti-static Teflon belt |
| Max Belt Pressure | 0 - 50 N/cm² |
| Heating Mode | Electric / Oil / Gas |
| Heating Zone Length | 500 - 6000 mm |
| Designed Speed | 0.5 - 15 m/min |
| Control System | Siemens or OEM |

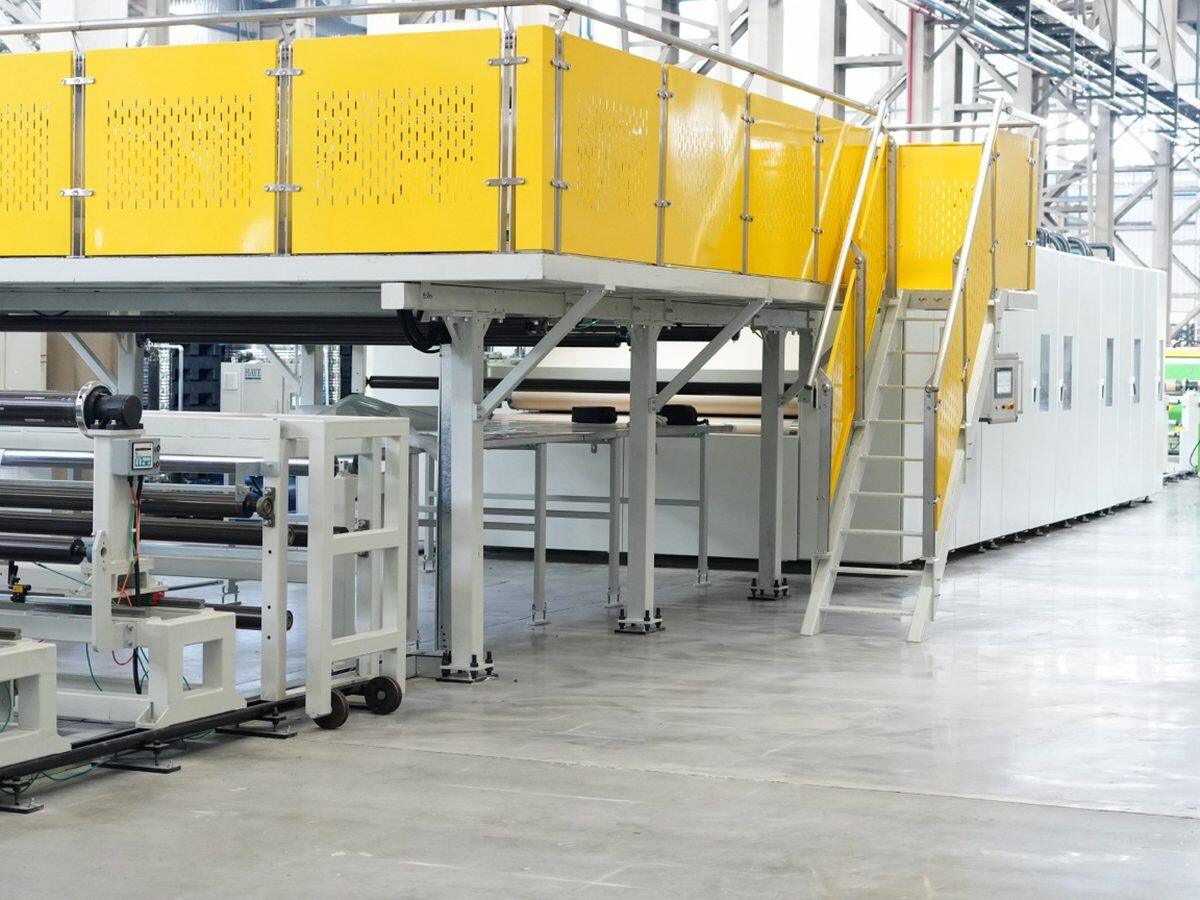

CFRT UD Prepreg Tape Line
Continuous melt-impregnation line producing unidirectional thermoplastic prepreg tape in a single pass, with selectable spindle count and resin system.
| Parameter | Value |
|---|---|
| Spindle Number | 72 / 96 / 192 / 384 / 600 / 700 |
| Applicable Resins | PEEK / PA / PC / PPS / PEI / PA6 / PP |
| Product Width | 300 - 1800 mm |
| Applicable Materials | Carbon / Glass / Aramid fiber |
| Product Thickness | 0.15 - 0.5 mm |
| Line Speed | 5 - 20 m/min |
| Heating Zone Length | 600 - 3000 mm |
| Control System | Siemens or OEM |

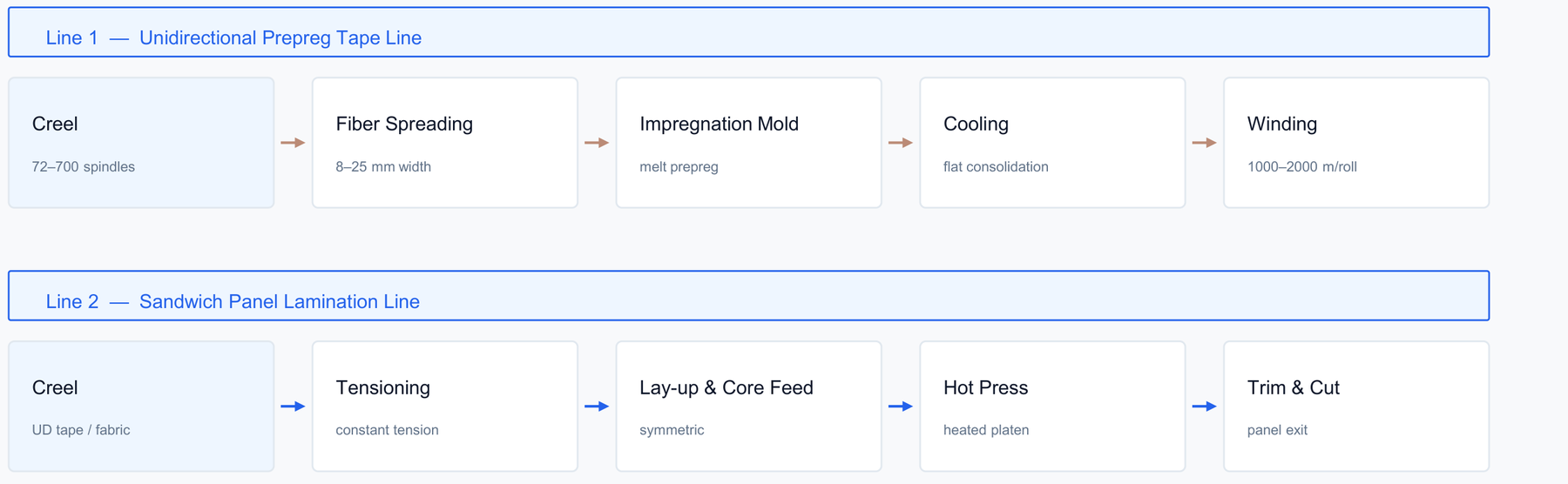

Manufacturing Process Flow
Two lines run in sequence. Line 1 produces continuous UD prepreg tape; that tape feeds Line 2 directly to form panels - with no intermediate slitting or re-winding, so fiber orientation is preserved end to end.
Tape line output width 300 - 1800 mm | Tape thickness 0.15 - 0.5 mm | Panel width <= 3200 mm | Panel thickness 8 - 60 mm
Applications - Continuous Fiber Reinforced Thermoplastic Composites
From commercial vehicles to marine, recreational and energy sectors - CFRTP panels deliver lightweight structural and interior solutions.
6 real delivered component applications. Custom sizes, cores and finishes available on request.

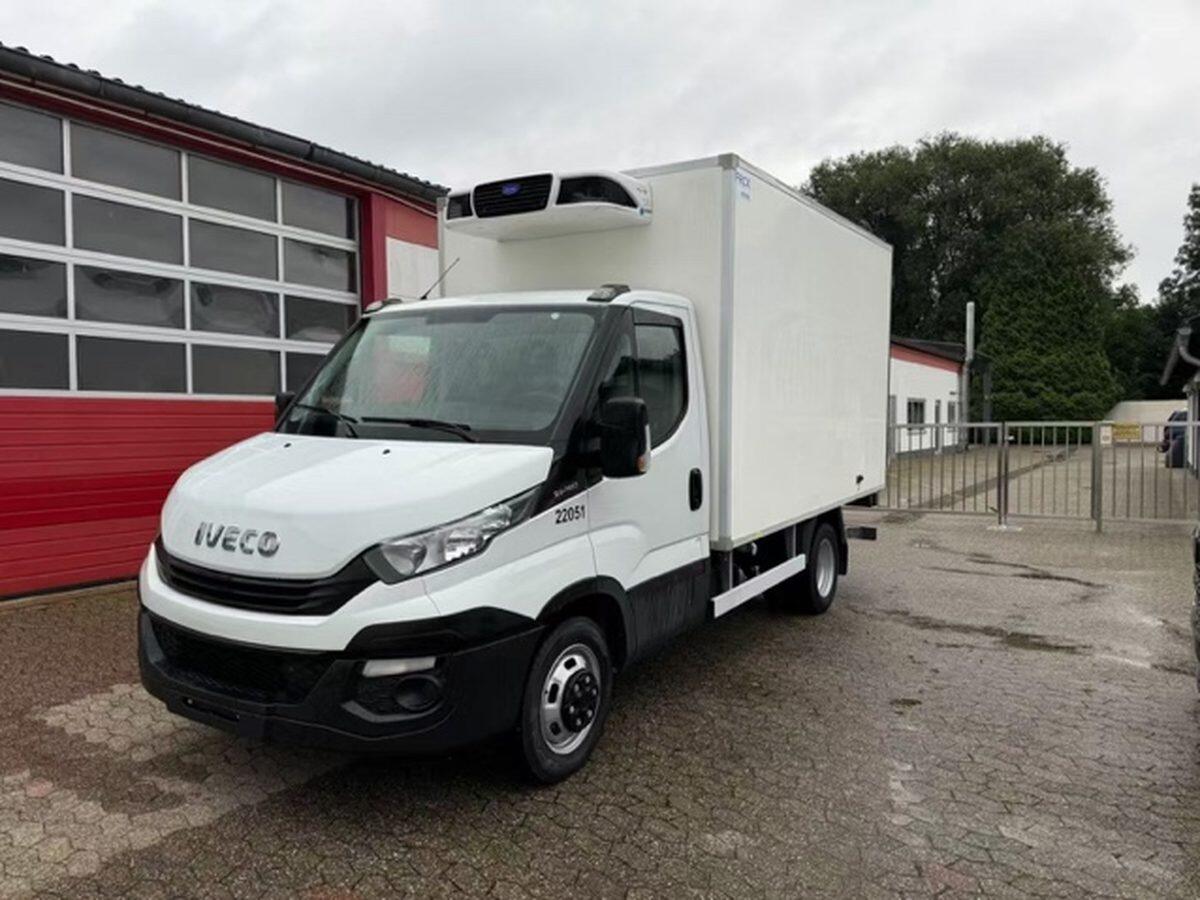

Refrigerated Truck Body
Lightweight refrigerated truck bodies cut from CFRTP solid and sandwich panels, reducing tare weight while meeting thermal and structural requirements.
Learn More

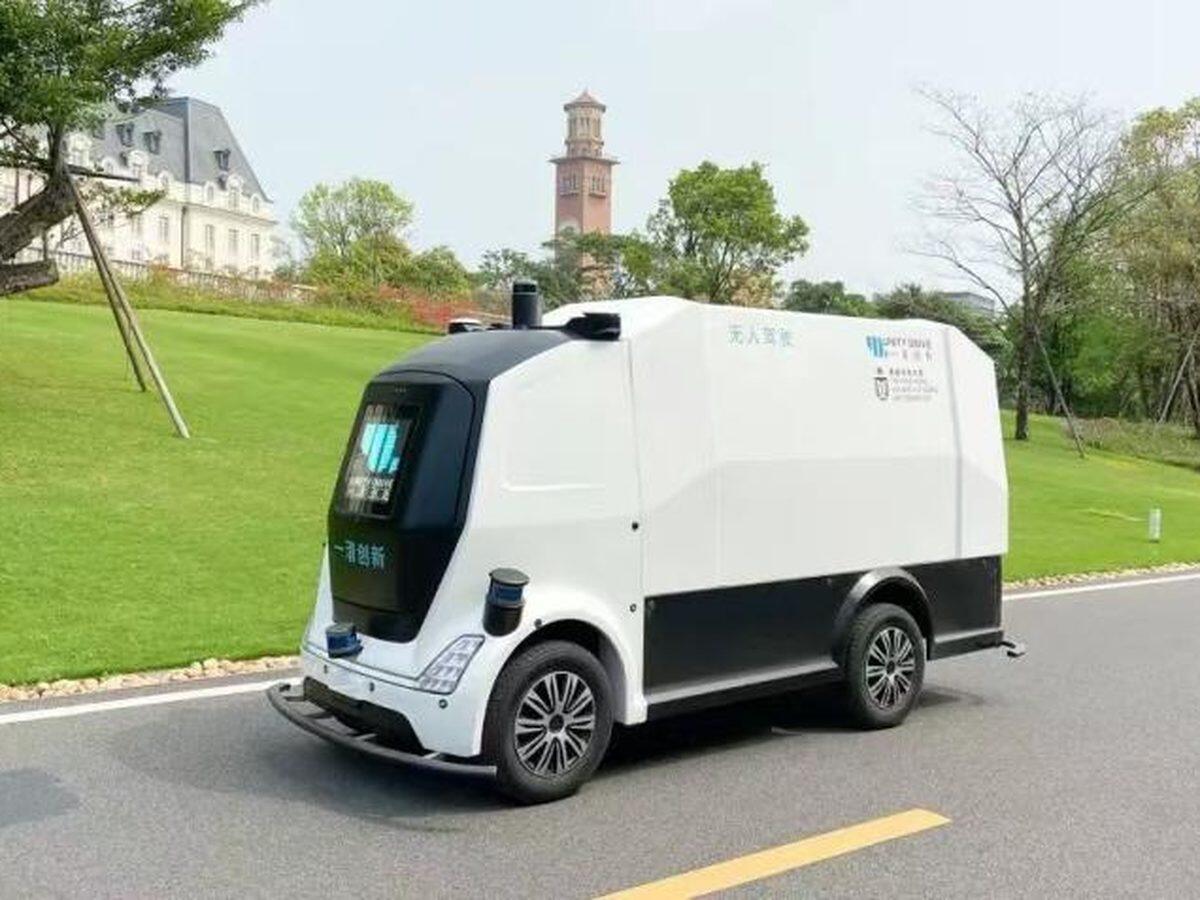

Autonomous Logistics Vehicle
Autonomous delivery vehicles using CFRTP body panels for light weight and corrosion-free, low-maintenance exterior surfaces.
Learn More
Marine & Yacht Interiors
Marine and yacht interior fit-out with CFRTP panels - low weight, good fire performance and resistance to humidity and saltwater exposure.
Learn More

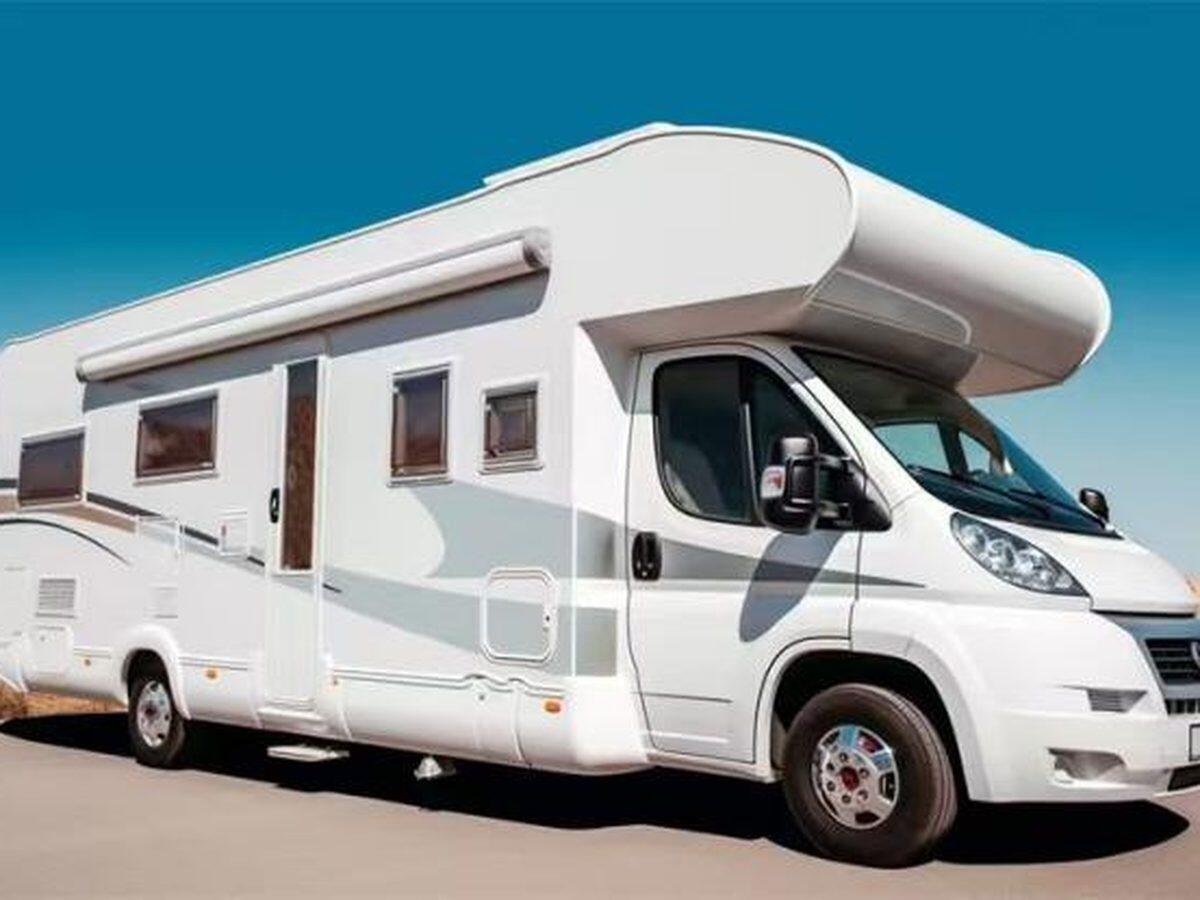

RV & Caravan Components
RV and caravan wall, roof and furniture components where weight reduction directly extends range and payload capacity.
Learn More
Premium Kitchen Cabinetry
Premium kitchen cabinetry and furniture panels with integrated surface protection - no painting, consistent colour and moisture resistance.
Learn More
Wind Turbine Enclosures
Wind turbine nacelle and blade-root enclosure panels where stiffness-to-weight ratio governs structural efficiency.
Learn MoreAbout Zloonex
National High-Tech Enterprise · Independent R&D and Manufacturing Base
Zloonex New Materials Co., Ltd. (Zloonex Group), registered in 2019, is a National High-Tech Enterprise driving global market expansion, cross-border projects, international sales, and customer support. Our R&D and manufacturing base specializes in continuous ultra-thin fiber-reinforced resin composites, optical and electrical functional materials, and finished structural components.
Jointly with the International Joint Laboratory for Carbon Fiber Composites at Henan University of Technology, we established the Ultra-Thin Composite Materials Engineering Application Joint Laboratory. Our core technical leaders bring over 15 years of experience in micro-reinforcement composite architectures, and a patent portfolio of 20+ filings — including 12 key invention patents — protects our proprietary material preparation technologies.
Learn MoreMilestones
Company Founded
Zloonex New Materials Co., Ltd. established. Began R&D in ultra-thin composite materials and fiber spreading technology.
Core Technology Breakthrough
Achieved 0.025mm fiber spreading, nano-sizing surface modification, and spray-free colored fabric production.
Equipment export and international sales across Europe, America, and Southeast Asia.
Equipment export and international sales across Europe, America, and Southeast Asia.
